Equipment Interfaces
Communicate with External Devices
Ripple I/O Front Ends interface with a variety of analog and digital research equipment, including ontogenetic, haptic, and behavioral devices to support a wide range of experimental paradigms.
Analog + Digital I/O
72.6 mm x 92 mm x 14.5 mm
Analog
| I/O Range | ± 5 V (audio ± 2.5 V) |
| I/O Resolution | 16 bits (1.5 mV/bit) |
| Inputs | 4 SMA, 2 Audio |
| Outputs | 4 SMA, 2 Audio |
Digital
| I/O Range | LVTTL (± 2.5 v) |
| Inputs | TTL Compliant Inputs |
| 4 SMA, 16 Parallel | |
| Outputs | 2 Strobes |
| 4 SMA, 16 Parallel |
Analog I/O
| I/O Range | ± 5 V (audio ± 2.5 V) |
| I/O Resolution | 16 bits (1.5 mV/bit) |
| Inputs | 4 SMA, 24 Parallel |
| 2 Audio | |
| Outputs | 4 SMA, 24 Parallel |
| 4 Audio | |
| Dimensions | 72 mm x 95 mm x 14.4 mm |

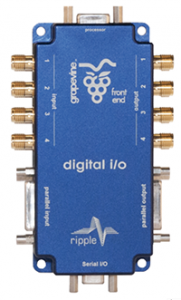

Digital I/O
| I/O Range | LVTTL (3.3 V), accepts up to 5V in |
| TTL Compliant Inputs | |
| Inputs | 4 SMA, 16 Parallel |
| 2 Strobes | |
| Outputs | 4 SMA, 16 Parallel |
| Dimensions | 59 mm x 92 mm x 14.4 mm |
Cables
Front End Cables
Connect one, two, three, or four Front Ends to a single Grapevine processor Front End port
Details
- Length: 2 m standard; custom lengths available
I/O Cables
Connect an Analog, Digital or Analog+Digital I/O front end using the single-ended cable, or simultaneously attach Analog and Digital I/O front ends to a single port using a double-ended cable.
Details
- Length: 2m, standard; custom lengths available
Adapters
We have a wide array of adapters for all commonly used electrodes and connectors; too many to list here. If you need a custom connection, our engineering teams are no strangers to modification, alteration, or customization. Contact sales@rppl.com for inquiries.
Touchproof Adapter
- Useful for applications that require the use of 1.5 mm safety DIN connectors, such as surface EEG, ECoG, and EMG electrodes
- The Touchproof Adapter prevents unwanted environmental noise pick up, through switches that ground unused channels
- Versions are available for use with all single-ended and differential Front Ends
Specifications
- Electrode Connector: 1.5 mm male 60601-compliant touchproof
- Dimensions: 105 mm x 64 mm x 26 mm
- Weight: 170 grams
Screw-Terminal Adapter
- Useful for single-wire electrode applications with either single-ended or differential Front Ends, including terminals for grounds and references
- The Screw Terminal Adapter prevents unwanted environmental noise pickup via individual switches that ground unused channels
Specifications
- Dimensions: 90 mm x 75 mm or 22m x 25 mm
Utah Array Pedestal Connector
- Connect up to four nano or pico front ends for up to 128 channels of recording and stimulation
- Removeable enclosure allows for easy access to the front ends while providing protection from damage
Specifications
- Dimensions: 15mm X 26mm X 26mm (44mm tall with enclosure)
- Weight 8.4 grams (15.7 grams with enclosure)
